ZDL Series

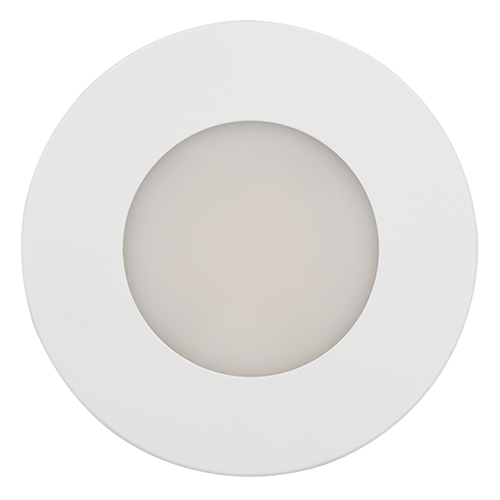

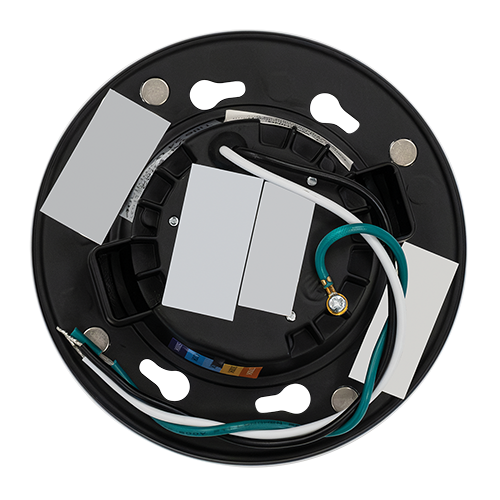

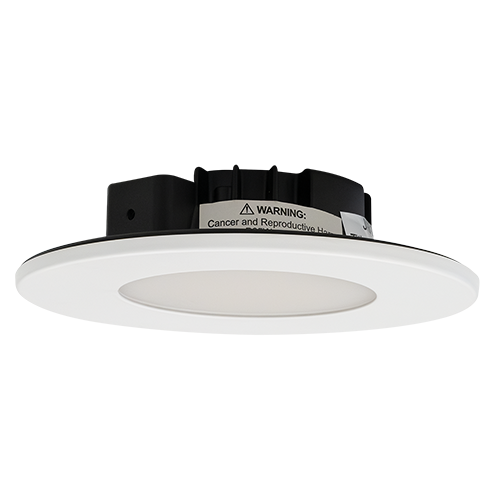

4" Multi Trim Surface Downlight

This series provides customers with a high quality luminaire utilizing the latest LED, solid state lighting and electronic driver technology for optimal performance and maximized energy efficiency. With a traditional opal white lens, the ZDL series produces even and uniform light distribution and ideal choice for offices, corridors, stairways, bedroom, closet, and foyers applications where customers are replacing incandescent, circline or compact fluorescent lamps. The LED Based ZDL series is a ceiling or wall mount series which can be used in a broad range of residential and commercial applications.
Specification Sheet

Resources

  • Aluminum spun housing with diffusion lens
  • Equipped with five color temperature switch
  • Available in 4″ model at 10 Watts
  • Optional three trim colors Black, Bronze & Brushed Nickel
  • Equipped with 120V dimming driver.

CCT

  • 2700K
  • 3000K
  • 3500K
  • 4000K
  • 5000K

CRI

  • 90 CRI

Color / Finish

  • White

Dimensions

  • H: 1.1 In. L: 4.9 In. W: 4.9 In.

Dimming Protocol

  • ELV
  • Triac

Efficacy

  • 70 lm/w

Lamp Base

  • Integrated

Lamp Life

  • 50000 hrs

Lamp Source

  • LED

Listings

  • ETL

Lumens

  • 700 Lm

Materials

  • Glass
  • Steel

Ratings & Compliance

  • JA8
  • LM80
  • RoHS
  • Title 24

Shape

  • Round

Voltage

  • 120 V

Warranty

  • 3 yr

Watts

  • 10 w
