GCC Series

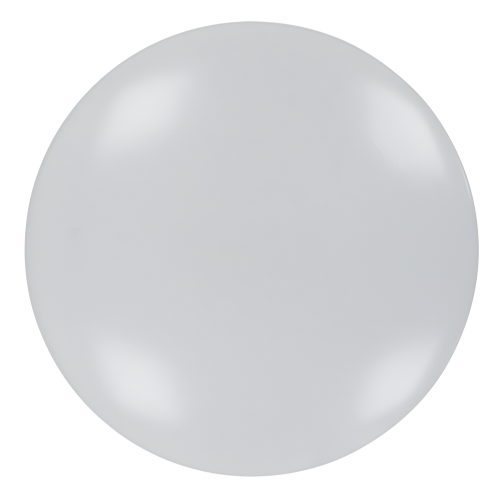

LED Generic Ceiling Cloud

This series provides customers with a high quality luminaire utilizing the latest LED, solid state lighting and electronic driver technology for optimal performance and maximized energy efficiency. With a traditional opal white lens, the GCC series produces even and uniform light distribution and ideal choice for offices, corridors, stairways, bedroom, closet, and foyers applications where customers are replacing incandescent, circline or compact fluorescent lamps. The LED Based GCC series is a ceiling or wall mount series which can be used in a broad range of residential and commercial applications. Capable of adjusting kelvin to five temperatures.
Specification Sheet

Resources

  • High-transmission (White) Acrylic lens with excellent distribution and uniformity.
  • Full distribution LED Luminaire.
  • Designed for a 20,000 Hour Life.
  • Available in CCT Selectable Kelvin temperatures, 2700K, 3000K, 3500K, 4000K, 5000K
  • Environmentally friendly – contains no mercury or other hazardous materials.
  • Diffuser is .080”” thick vacuum formed smooth white acrylic.

CCT

  • Field Selectable CCT
  • 2700K
  • 3000K
  • 3500K
  • 4000K
  • 5000K

CRI

  • 90 CRI

Color / Finish

  • White

Dimensions

  • H: 3.5 In. L: 11 In. W: 11 In.
  • H: 3.5 In. L: 14 In. W: 14 In.

Efficacy

  • 70 lm/w

Lamp Base

  • Integrated

Lamp Life

  • 30000 hrs

Lamp Source

  • LED

Listings

  • ETL

Lumens

  • 1190 Lm
  • 1820 Lm

Materials

  • Acrylic
  • Steel

Ratings & Compliance

  • JA8
  • RoHS
  • Title 24

Shape

  • Dome
  • Round

Voltage

  • 120 V

Warranty

  • 3 yr

Watts

  • 17 w
  • 26 w
